Non Woven PLC 120pcs/mins T Shirt Bag Machine for supermarket
Specification
| Product name | Non Woven PLC 120pcs/min T Shirt Bag Machine |
| Power supply | 220 v 15kw |
| Product Speed | 20-120pcs/mins |
| Machine Weight | 2800kg |

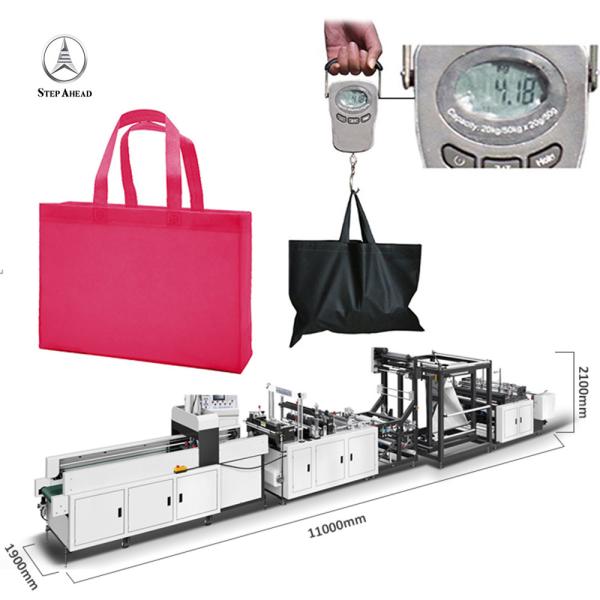

| Machine Dimension | 11000X1900X2100mm(LX W X H) |
| Product size | 550-1250 mm(w) |
| Cetification | CE |
| Pass rate | 98% |
Enviromental requirement | 10-35C general dust-free workshop Humidity 5-38% HR, non-condensing |
Warranty | 1 year |
| Logo | Customize Logo Available |
| Lead time | 7-15days |
| Final Product | Eco-friendly shopping bag |
| Worker number | 2 |
Process flow:
Roll Material - Side Folding - Heat -Cross Folding - Insert -
Position - Punch - Heat - Cut - Collect the Finished Product -
Automatically Press into Vest Bags
Machine construction
Feeding Part
The maximum unwinding diameter of this machine is 1 meter.
Adopt automatic feeding, automatic tension, automatic photoelectric
rectification, no stop machine and other industrial control
devices.
Ultrasonic folding device: hand wheel, screw rod adjustment,
ultrasonic welding.
The maximum diameter of the roll is 1 meter.
Main motor 1.5 KW
Fabric Cross Folding
The cloth is folded in half, the solid triangle steel frame, the
non-woven cloth bag folded function, the adjustment is convenient,
the whole equipment does not move the situation, also may
straighten the material.
Vest Bag Insert Part
70mm one set zhejiang zhengxin ultrasonic for side sealing
Disk insert
It is suitable for flat bottom pocket, vest bag inserting edge,
step motor to pull that long
The Machine Configuration:
| Feeding device | 1set |
| Folding and traction device | 1set |
| Vertical folding device | 1set |
Control device and unwinding device:
| Clamping device | Inflatable shaft φ3″(φ76mm) |
| Correction device | Use automatic correction system |
| Automatic stop without material | Using automatic travel switch stop material ,high precision |
| Feeding board | Stainless steel board(triangle) |
| Electril control system | Non-woven bag(two drive)bag making system |
| Ultrasonic system | 300mm 2pcs 2500W,(Taiwan Mingyou) 70mm 3pcs 1500W,(Wenzhou Zhengxin) |
| Temperature control system | Temperature control components 1pcs |
| Operation method | The man-machine touch |
| Relay | Schneider |
| Pneumatic element | AirTAC (Taiwan) |
Product Packing
Machine will packed with plastic warp and cover with Wood box case.
logistic service
Logistic service is available in railway, sea cargo and air
freight, to deliver the product to your destination in time and
security. We have cooperated with many reliable third-party
logistic service companies. We can provide customized logistic
service, according to your equirment.
