Ultrasonic Welding 220VAC Surgical Mask Making Machine
Product description

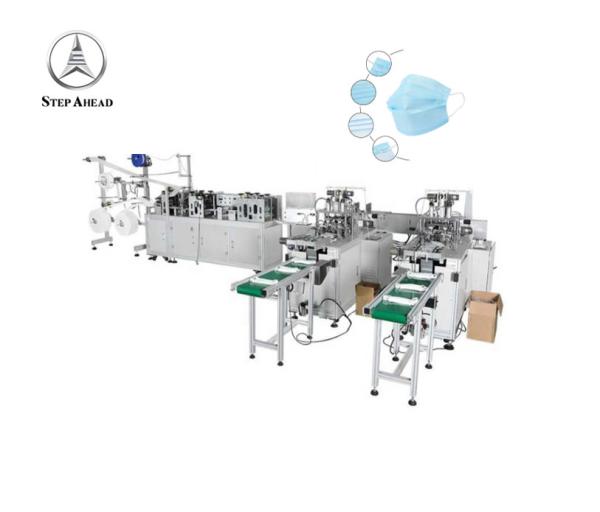

Introduction of full automatic face mask machine
This production line is a fully automatic 1+2 mask machine, one
mask main body machine drives two ear loop welding machines.
This machine adopts PLC, touch screen control, main conveyor belt
adopts servo transmission motor, accurate transmission, stable
control, adjustable output speed
After the mask main body is output by the machine, the mask body
piece is transferred to the turning mechanism by the conveyor belt
structure. Body mask via flip agencies will face mask to connection
machine conveyor belt, again through the conveyor belt will mask
the body mask piece to the front of the machine above the first
mask plate, finally through the cylinder down the mask onto mask
ear loop welding machine position, follow-up by ear loop welding of
the mask to add ear rope of mask, then mask is complete.
Specification
Product name | High-Speed Mask making machine |
Power supply | 220VAC±5 50HZ 9kw |
Production speed | 6000-9000pcs/hour |
Mask Size | 17.5*9.5cm |
Environmental requirements | 10-35 ℃, general dust-free workshop |
Air source | 0.5～0.7 MPa, 300L/min |
Dimension | 6500mm(L)×4500mm(W)×1900mm(H) |
Weight | <2500kg |
Certification | CE |
Pass rate | >98% |
Warranty | 1 year |
Humidity | 0-95% non-air conditioner |
Logo | Customized mask logo available |
Advantages:
The whole machine adopts the aluminum alloy structure, which is
more beautiful and sturdy.
High stability, with about 98% Product Qualification Ratio.
High-speed output lines, high output.
Fully automatic outer earloop spot welding machine colleagues make
the mask sheet and the external ear spot welding part, it can save
labor, once the non-woven fabric raw material is run out, the
machine will stop automatically.
Using high-quality components like servo motor, ultrasonic, PLC
system,led control panel, etc. In the mask production line, to
ensure the machine can last longer.
Test run a 24-hours working performance test, to ensure the
machine’s stability before the final delivery.
