Urtla Non Woven Earloop 220VAC Surgical Face Mask Machine
Product description

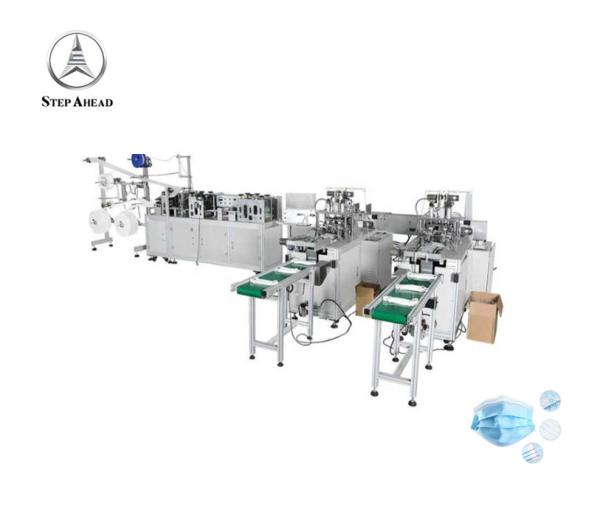

Introduction of full automatic surgical face mask making machine
This production line is a fully automatic 1+2 mask machine, one
mask main body machine drives two ear loop welding machine under
regular working condition, it can produce 6000-90000 pieces per
hour and continuously run for 16 to 18 hours.
The machine adopts the PLC system, touch screen control panel, main
conveyor belt adopts servo transmission motor, accurate
transmission, stable control, adjustable the production speed.
The mask body piece is transferred to the turning mechanism by the
conveyor belt structure after the mask main body is output by the
machine. Body mask via flip agencies will face mask to connection
machine conveyor belt, again through the conveyor belt will mask
the body mask piece to the front of the machine above the first
mask plate, finally through the cylinder down the mask onto mask
ear loop welding machine position, follow-up by ear loop welding of
the mask to add ear rope of mask, then mask is complete.
Specification
Product name | Face mask making machine |
Power supply | 220VAC±5 50HZ |
Production speed | 100-150pcs/min |
Mask Size | 17.5*9.5cm |
Environmental requirements | 10-35 ℃, general dust-free workshop Humidity 0-95% non-condensing |
Air source | 0.5～0.7 MPa, 300L/min |
Dimension | 6500mm(L)×4500mm(W)×1900mm(H) |
Weight | <2500kg |
Certification | CE |
Pass rate | >98% |
Warranty | 1 year |
Advantages:
The whole machine adopts the aluminum alloy structure, which is
more beautiful and sturdy.
High stability, with about 98% Product Qualification Ratio.
High-speed output lines, high output.
Fully automatic outer earloop spot welding machine colleagues make
the mask sheet and the external ear spot welding part, it can save
labor, once the non-woven fabric raw material is run out, the
machine will stop automatically.
Using high-quality components like servo motor, ultrasonic, PLC
control etc. in the mask production line, to ensure the machine can
last longer.
Test run a 24-hours working performance test, to ensure the
machine’s stability before the final delivery.
Why choose us?
• Provide one-stop solutions, from materials, production line to
final mask product.
• One-to-one technical support
• 24 hours online, 8 hours response
• Certificated supplier
• Professional development team
• Over 10-years profound experience
Product details
Product Packing
FQA
After service
For after-sales service, we will be provided: Field installation,
commissioning and training, free spare parts, and online support,
video technical support
We will provide a 1-year warranty, within warranty field
maintenance and repair service is available. After the warranty
expired, we will still provide video and online technical support
to assist customers.
