Adjustable Speed Medical 3py Non Woven Mask Making Machine
Product description

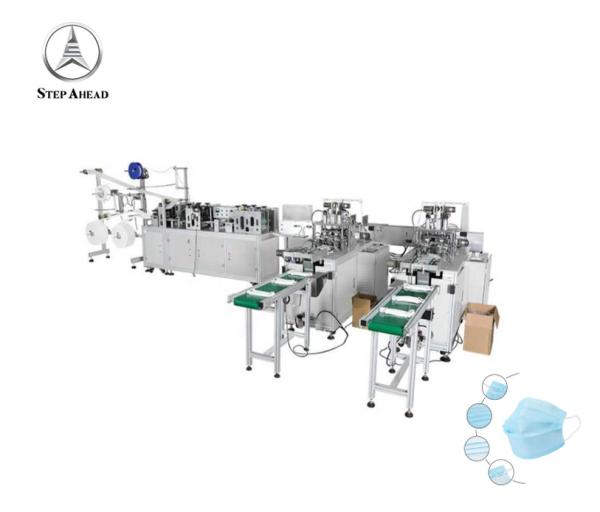

Introduction of surgical face mask making machine
This production line is a fully automatic 1+2 mask machine, one
mask main body machine drives two ear loop welding machines. In
regular production mode, continuously run for 16 to 18 hours.
This machine adopts PLC, touch screen control, main conveyor belt
adopts servo motor transmission, accurate transmission, stable
control, adjustable speed
After the mask main body is output by the machine, the mask body
piece is transferred to the turning mechanism by the conveyor belt
structure. Body mask via will flip agencies face mask to the
connection machine conveyor belt, again through the conveyor belt
will mask the body mask piece to the front of the machine above the
first mask plate, finally through the cylinder down the mask onto
mask ear loop welding machine position, follow-up by ear loop
welding of the mask to add ear rope of mask, then mask is complete.
Specification
Product name | 3Ply face mask making machine line |
Power supply | 220VAC±5 50HZ |
Production speed | 100-150pcs/min |
Mask Size | 17.5*9.5cm |
Environmental requirements | 10-35 ℃, general dust-free workshop |
Air source | 0.5～0.7 MPa, 300L/min |
Dimension | 6500mm(L)×4500mm(W)×1900mm(H) |
Weight | <2500kg |
Certification | CE |
Pass | >98% |
Warranty | 1 year |
Humidity | 0-95% non-air conditioner |
Advantages:
The whole machine adopts the aluminum alloy structure, which is
more beautiful and sturdy.
High stability, with about 98% Product Qualification Ratio.
High-speed output lines, high output.
Fully automatic outer earloop spot welding machine colleagues make
the mask sheet and the external ear spot welding part, it can save
labor, once the non-woven fabric raw material is run out, the
machine will stop automatically.
Using high-quality components like servo motor, ultrasonic, PLC
control etc. in the mask production line, to ensure the machine can
last longer.
Test run a 24-hours working performance test, to ensure the
machine’s stability before the final delivery.
Why choose us?
• Provide one-stop solutions
• One-to-one technical support
• 24 hour online, 8 hours response
• Certificated supplier
• Professional development team
• Over 10-years profound experience
Product details
Mask fit test requirements:
1. To be certified as a medical mask, according to the Chinese
government, a special mask fit test needed to run on real humans
with less than 8% leakage.
2. 3Ply medical masks have slightly stricter requirements for
pressure drop while inhaling. That means they’re required to be
slightly more breathable than other masks.
3. 3Ply medical mask also has slightly stricter requirements for
pressure drop while exhaling, which should help with breathability.
Product Packing
FQA
After service
For after-sales service, we will be provided: Field installation,
commissioning and training, free spare parts, and online support,
video technical support
We will provide a 1-year warranty, within warranty field
maintenance and repair service is available. After the warranty
expired, we will still provide video and online technical support
to assist customers.
Logistic
Logistic for oversea customers, we recommend Cargo and air freight
to deliver the product to your destination.
FOB
We are mainly using Shenzhen Port for cargo and air freight. There
multiple ports and airports nearby like, Hong Kong Port and
Guangzhou Port and etc. We can also assist the customer to Shanghai
Port or other major ports or airport in China
