ZBX-A700 fully automatic multi-function non-woven bag making
machine is our company according to the latest international
environmental protection concept, depth design, independent
research and development. Should the valuable requirements of
customers at home and abroad, to improve the new generation, the
successful listing of the latest generation of full automatic
multifunctional non-woven bag machine, a machine with light,
electricity, gas, composed of three and integrated design of the
structure, the equipment adopts high-performance PLC touch type
high-performance machine control system, the system of the company
developed non-woven bag machine professional industrial despotism.
This equipment is advanced in technology, stable in operation
performance and fast in bag making. It is one of the most advanced
non-woven bags making machines in the world.
The machine is used for raw materials, non-woven fabrics can
process a variety of different specifications, different shapes of
non-woven bag, flat bag, vest bag, the electromechanical machine is
set as a whole, the use of LCD touch screen operation, step with
fixed length, photoelectric tracking, automatic positioning
computer, computer automatic correction. Accurate and stable, and
can set automatic counting, counting alarm, automatic punching and
other industrial equipment, the production of finished sealing
strong, beautiful tangent. High efficiency, high quality is the
environmental protection equipment bag you can be assured to use
Main Technical Variables:
| Type | ZBX-A700 |
| Material Width | 550-1250mm |
| Production speed | 20-120pcs/min |
| Bag Height | 200-580mm |
| Bag Width | 100-800mm |
| Material basis weight | 30-120g/m2 |
| Power supply | 220v |
| Total Power | 15kw |
| Overall size | 11000X1900X2100mm(LX W X H) |
| weight | 2800KG |

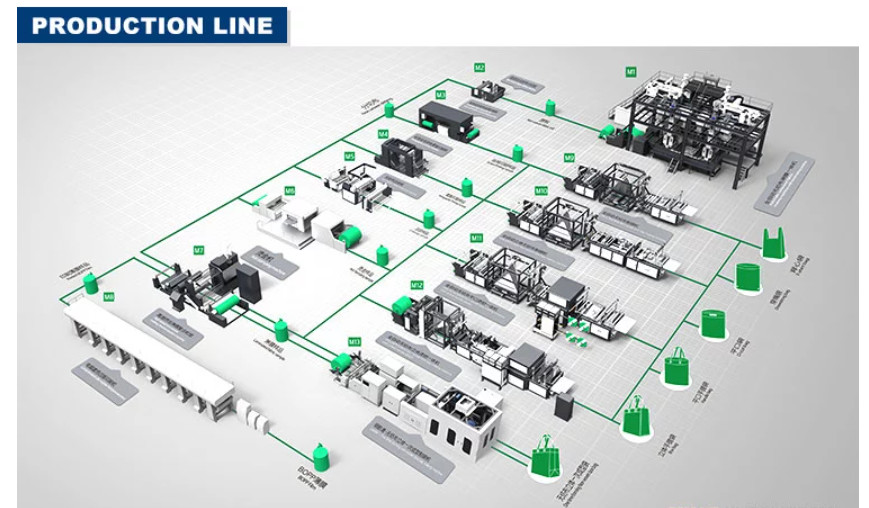

Process flow:
Roll Material - Side Folding - Heat -Cross Folding - Insert -
Position - Punch - Heat - Cut - Collect the Finished Product -
Automatically Press into Vest Bags
Machine construction
◆Feeding Part
The maximum unwinding diameter of this machine is 1 meter.
Adopt automatic feeding, automatic tension, automatic photoelectric
rectification, no stop machine and other industrial control
devices.
Ultrasonic folding device: hand wheel, screw rod adjustment,
ultrasonic welding.
The maximum diameter of the roll is 1 meter.
Main motor 1.5 KW
◆Fabric Cross Folding
The cloth is folded in half, the solid triangle steel frame, the
non-woven cloth bag folded function, the adjustment is convenient,
the whole equipment does not move the situation, also may
straighten the material.
◆Vest Bag Insert Part
70mm one set zhejiang zhengxin ultrasonic for side sealing
Disk insert
It is suitable for flat bottom pocket, vest bag inserting edge,
step motor to pull that long
◆Automatic Punching Part
Clamping bag, mould stamping into vest ba
◆Distribution Box
Operation panel: touch screen operation interface, humanized
design, simple and easy to learn. The split structure of all
automation control components together with PLC and touch screen
man-machine interface device, convenient operation and maintenance.
The Machine Configuration:
| Feeding device | 1set |
| Folding and traction device | 1set |
| Vertical folding device | 1set |
Feeding device:
| unwinding method | Magnetic powder tension control |
| Clamping device | Inflatable shaft φ3″(φ76mm) |
| Unwinding diameter | φ1000mm |
Control device and unwinding device:
| Clamping device | Inflatable shaft φ3″(φ76mm) |
| Correction device | Use automatic correction system |
| Automatic stop without material | Using automatic travel switch stop material ,high precision |
| Feeding board | Stainless steel board(triangle) |
| Electril control system | Non-woven bag(two drive)bag making system |
| Ultrasonic system | 300mm 2pcs 2500W,(Taiwan Mingyou) 70mm 3pcs 1500W,(Wenzhou Zhengxin) |
| Temperature control system | Temperature control components 1pcs |
| Operation method | The man-machine touch |
| Relay | Schneider |
| Pneumatic element | AirTAC (Taiwan) |
Commonly used appliances brand:
| Temperature displayer | CHINT temperature meter,show preheat roll surface temperature |
| Commonly electrical components/switch | CHINT or same level brand |
| Frequency converter | DEVER(Taizhou) or same level brand |
| Frequency motor | Dott(Taiwan)or same level brand |
Others:
| Screen | Weinview (Taiwan)(LCD touch screen)built-in PLC or same level brand |
FQA
The parts have broken within warranty
Expect for consumables like ultrasound, blades, and scissors. We
would provide the free spare parts within the warranty.
Machine operation problem
If you have any problems during the operation, you can contact our
customer service at any time. Our engineers will provide the
solution and online support according to your description.
logistic service
Logistic service is available in railway, sea cargo and air
freight, to deliver the product to your destination in time and
security. We have cooperated with many reliable third-party
logistic service companies. We can provide customized logistic
service, according to your equipment.
