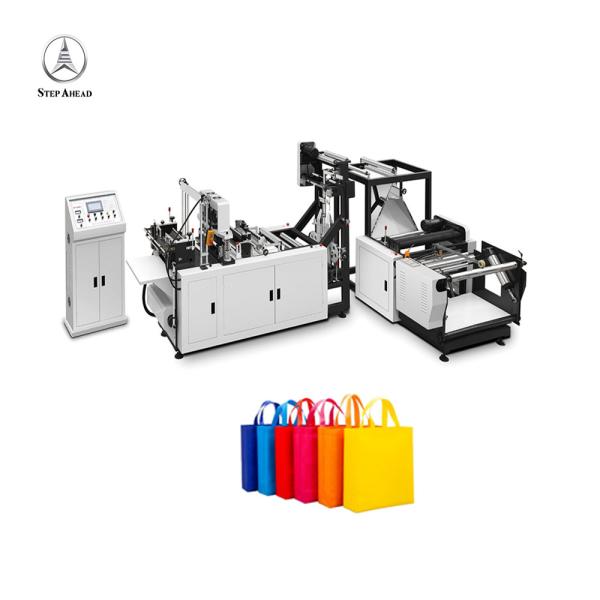

Full Automatic T-shirt bag Non-woven Bag Making Production Machine
Product Description
ZBX-A700 fully automatic multi-function non-woven bag making
machine is our company according to the latest international
environmental protection concept, depth design, independent
research and development. Should the valuable requirements of
customers at home and abroad, to improve the new generation, the
successful listing of the latest generation of full automatic
multifunctional non-woven bag machine, a machine with light,
electricity, gas, composed of three and integrated design of the
structure, the equipment adopts high-performance PLC touch type
high-performance machine control system, the system of the company
developed non-woven bag machine professional industrial despotism.
This equipment is advanced in technology, stable in operation
performance and fast in bag making. It is one of the most advanced
non-woven bags making machines in the world.
Specification
| Product name | Non Woven Shopping Bag Machine |
| Power supply | 220v 15kw |
| Product Speed | 20-120/pcs mins |
| Machine Weight | 2800kg |
| Machine Dimension | 11000X1900X2100mm(LX W X H) |
| Product size | 550-1250mm(w) |
| Certification | CE |
| Pass rate | 98% |
Environmental requirement | 10-35C general dust-free workshop Humidity 5-38% HR, non-condensing |
Warranty | 1 year |
| Logo | Customize Logo Available |
| Lead time | 7-15days |
| Final Product | Eco-friendly shopping bag |
| Worker number | 2 |
Process flow:
Roll Material - Side Folding - Heat -Cross Folding - Insert -
Position - Punch - Heat - Cut - Collect the Finished Product -
Automatically Press into Vest Bags
Machine construction
Feeding Part
The maximum unwinding diameter of this machine is 1 meter.
Adopt automatic feeding, automatic tension, automatic photoelectric
rectification, no stop machine and other industrial control
devices.
Ultrasonic folding device: hand wheel, screw rod adjustment,
ultrasonic welding.
The maximum diameter of the roll is 1 meter.
Main motor 1.5 KW
Fabric Cross Folding
The cloth is folded in half, the solid triangle steel frame, the
non-woven cloth bag folded function, the adjustment is convenient,
the whole equipment does not move the situation, also may
straighten the material.
Vest Bag Insert Part
70mm one set zhejiang zhengxin ultrasonic for side sealing
Disk insert
It is suitable for flat bottom pocket, vest bag inserting edge,
step motor to pull that long
Machine Head Collecting Bag
Color tracking: high precision color mark recognition, zero error.
Material shortage stop device: when the material or cloth is not
pulled to the bag making part, the machine will stop automatically.
The ultrasonic air pressure is avoided, and the damage to the
ultrasonic wave and the waste of cloth are reduced.
Stepping feeding device: stepping motor to adjust the cloth
parallel to the mold, to control the opening of the mouth.
Ultrasonic device: stepping motor with cam drive, high speed mute,
smooth movement, high speed wear resistance.
Using 2 sets of Taiwan ultrasonic welding device (welding travel
300MM) edge solid appearance also can choose different
configurations of the independent brand zhengxin ultrasonic
according to the requirements of edge.
Automatic Punching Part
Clamping bag, mould stamping into vest ba
Distribution Box
Operation panel: touch screen operation interface, humanized
design, simple and easy to learn. The split structure of all
automation control components together with PLC and touch screen
man-machine interface device, convenient operation and maintenance.
Product Packing
Machine will packed with plastic warp and cover with Wood box case.
logistic service
Logistic service is available in railway, sea cargo and air
freight, to deliver the product to your destination in time and
security. We have cooperated with many reliable third-party
logistic service companies. We can provide customized logistic
service, according to your equirment.
